D20Q-6 S/N 60001-UP
130 pages · 118 diagrams
- D20Q-6
- Bulldozer - Small(-D39)
KOMATSU D20Q-6 S/N 60001-UP
ENGINE RELATED PARTS AND ELECTRICAL SYSTEM
ENGINE MOUNTING PARTS
RADIATOR AND PIPING
RADIATOR SHUTTER
FUEL TANK AND PIPING
FUEL TANK AND PIPING (WITH ROPS CAB)
FUEL TANK ADDITIONAL STRAINER AND PIPING
BATTERY
BATTERY (LARGE CAPACITY TYPE)
INSTRUMENT PANEL (FOR LEVER STEERING)
INSTRUMENT PANEL (FOR PEDAL STEERING)
INSTRUMENT PANEL (FOR PEDAL STEERING WITH VANDALISM PROTECTION)
INSTRUMENT PANEL (FOR LEVER STEERING) (WITH ROPS CAB)
INSTRUMENT PANEL (FOR LEVER STEERING)(FOR QUICK HEATER GLOW PLUG)
INSTRUMENT PANEL (FOR LEVER STEERING) (WITH TACHOMETER)
ELECTRICAL SYSTEM
ELECTRICAL SYSTEM (WITH ROPS CAB)
LAMP AND REAR VIEW MIRROR (FOR VEHICLE INSPECTION PARTS)
PANEL (FOR VEHICLE INSPECTION PARTS)
WIRING (FOR VEHICLE INSPECTION PARTS)
QUICK HEATER GLOW PLUG
MAIN CLUTCH,TRANSMISSION, STEERING AND FINAL DRIVE
UNIVERSAL JOINT
MAIN CLUTCH CASE
MAIN CLUTCH PLATE
MAIN CLUTCH YOKE
INERTIA BRAKE
MAIN CLUTCH PUMP DRIVE AND RELIEF VALVE
MAIN CLUTCH PUMP
TRANSMISSION (CASE) (1/5)
TRANSMISSION (MAIN SHAFT AND GEAR) (2/5)
TRANSMISSION (INTERMEDIATE SHAFT AND GEAR) (3/5)
TRANSMISSION (COUNTER SHAFT AND GEAR) (4/5)
TRANSMISSION (SHIFT LEVER AND FORK) (5/5)
STEERING CASE AND MAIN FRAME
BEVEL GEAR AND SHAFT
STEERING CLUTCH
BRAKE
STEERING CASE COVER
FINAL DRIVE CASE

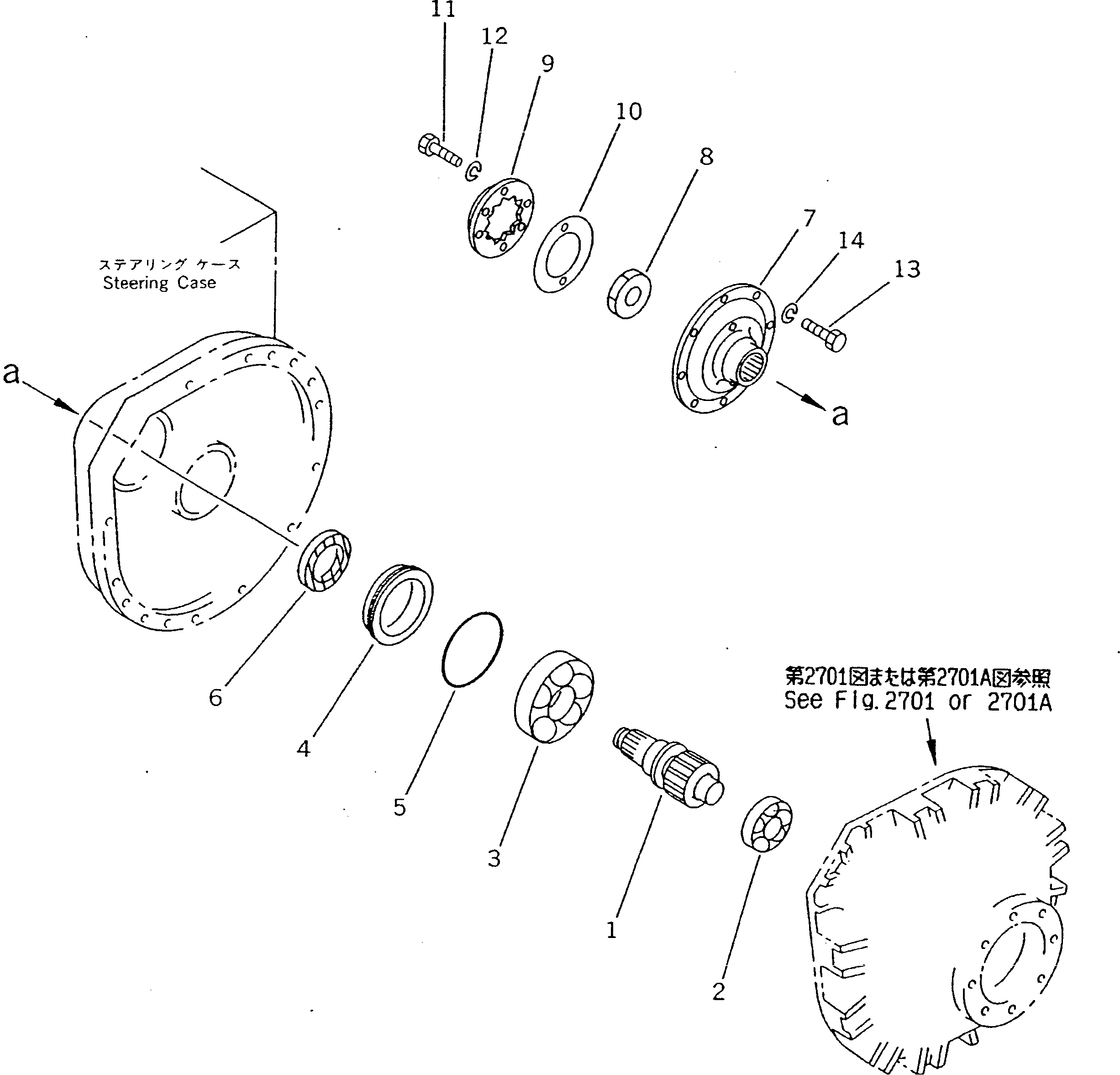

FINAL DRIVE GEAR
SPROCKET AND SHAFT
TRACK
TRACK FRAME (WITH SEPARATE TYPE TRACK ROLLER GUARD)
TRACK FRAME (WITH MONO BLOCK TYPE TRACK ROLLER GUARD)
TRACK FRAME (WITH SEPARATE TYPE TRACK ROLLER GUARD) (FOR 6-TRACK ROLLER)
RECOIL SPRING(#60001-60170)
RECOIL SPRING(#60171-)- RECOIL SPRING (REINFORCED TYPE)
FRONT IDLER
TRACK ROLLER- TRACK ROLLER (FOR 6-TRACK ROLLER)
CARRIER ROLLER
TRACK SHOE (MASTER PIN TYPE) (SWAMP TYPE)
TRACK SHOE (MASTER PIN TYPE) (FLAT TYPE WITH HOLE)
TRACK SHOE (LUBRICATE TYPE) (SWAMP TYPE)
CONTROL SYSTEM
FUEL CONTROL LEVER
MAIN CLUTCH PEDAL (FOR LEVER STEERING)- MAIN CLUTCH PEDAL (FOR PEDAL STEERING)
STEERING CONTROL LEVER (FOR LEVER STEERING)
STEERING CONTROL LINKAGE (FOR LEVER STEERING)
STEERING AND BRAKE PEDAL (FOR PEDAL STEERING)
STEERING PEDAL LINKAGE (FOR PEDAL STEERING)
BRAKE PEDAL (FOR LEVER STEERING)
BRAKE PEDAL LINKAGE
BRAKE PEDAL (FOR LEVER STEERING) (FOR VEHICLE INSPECTION PARTS)
PARKING BRAKE LEVER (FOR PEDAL STEERING)
STEERING VALVE (FOR LEVER STEERING)
STEERING VALVE (FOR PEDAL STEERING)
STEERING PIPING
OIL COOLER PIPING
GUARD
RADIATOR GUARD AND HOOD
RADIATOR GUARD AND HOOD (WITH ENGINE SIDE COVER)
LOADER FRAME AND FLOOR PLATE (FOR LEVER STEERING)
LOADER FRAME AND FLOOR PLATE (FOR PEDAL STEERING)
LOADER FRAME AND FLOOR PLATE (FOR LEVER STEERING) (FOR VEHICLE INSPECTION PARTS)
LOADER FRAME AND FLOOR PLATE (WITH ROPS CAB)
REAR COVER AND HYDRAULIC TANK(#60001-60260)
REAR COVER AND HYDRAULIC TANK(#60261-)
REAR COVER AND HYDRAULIC TANK (FOR VEHICLE INSPECTION PARTS)(#60001-60260)
REAR COVER AND HYDRAULIC TANK (FOR VEHICLE INSPECTION PARTS)(#60261-)
REAR COVER AND HYDRAULIC TANK (WITH ROPS CAB)
UNDER GUARD
UNDER GUARD (WITH FRONT HOOK)
OPERATOR'S SEAT (RIGID TYPE) (FOR LEVER STEERING)
OPERATOR'S SEAT (RIGID TYPE) (FOR PEDAL STEERING)
OPERATOR'S SEAT (WITH OIL DAMPER)
CROSS BAR
CANOPY(#60001-60068)
CANOPY(#60069-60419)
CANOPY(#60420-)
CANOPY (CANVAS)
HEAD GUARD
ROPS BRACKET
ROPS CANOPY
ROPS CAB (BODY) (1/5)
ROPS CAB (FRONT AND REAR WINDOW) (2/5)
ROPS CAB (DOOR AND SIDE WINDOW) (3/5)
ROPS CAB (ELECTRICAL SYSTEM) (4/5)
ROPS CAB (MOUNTING PARTS) (5/5)
WATER VALVE (FOR CAR HEATER)
