D37PG-5A S/N 3001-UP
229 pages · 210 diagrams
- D37PG-5A
- BULLDOZERS

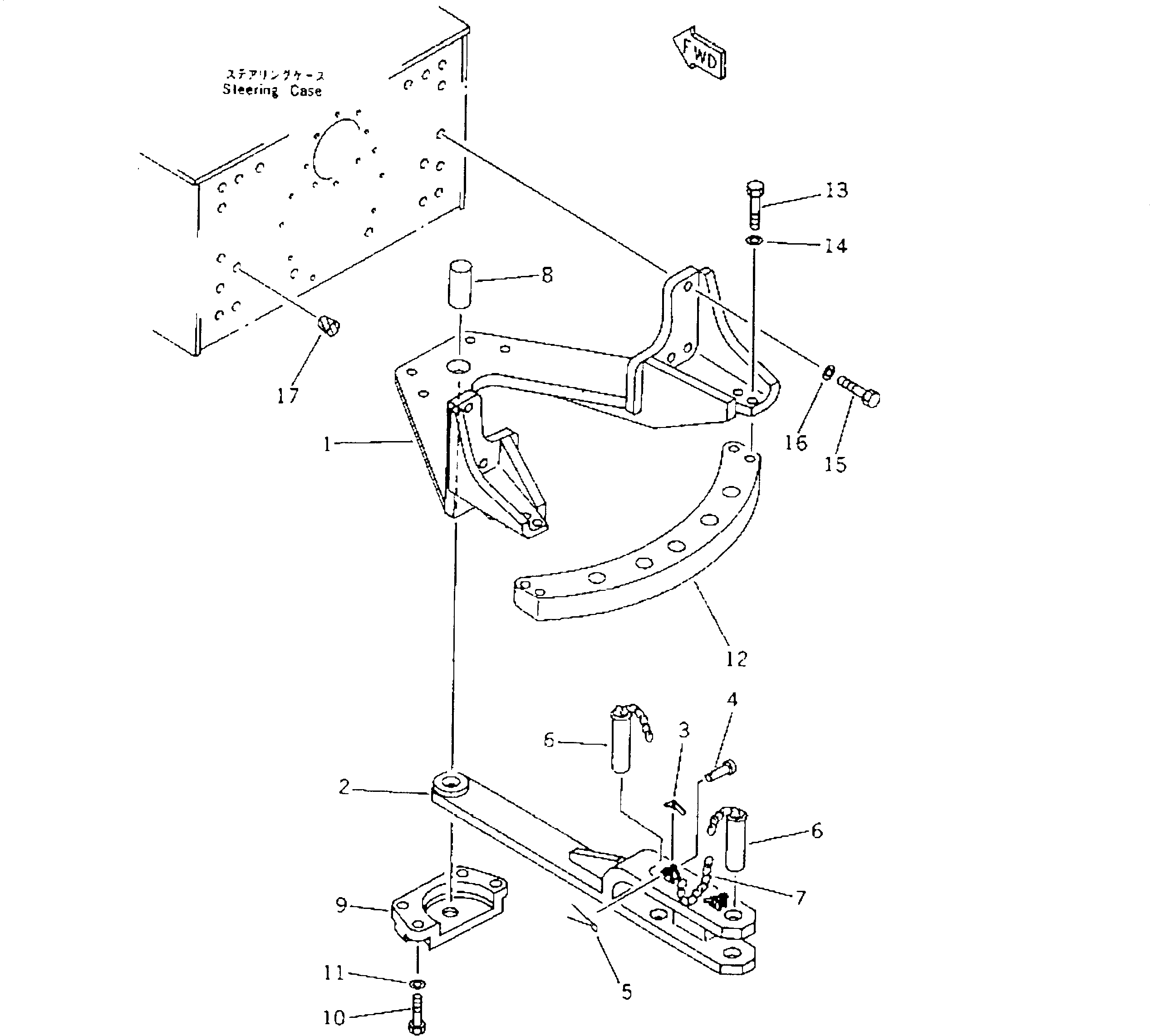

KOMATSU D37PG-5A S/N 3001-UP
ENGINE RELATED PARTS
COOLING SYSTEM
RADIATOR AND PIPING(#3001-3541)
RADIATOR AND PIPING(#3542-3660)
RADIATOR AND PIPING(#3661-)
RADIATOR AND PIPING(FOR 25A ALTERNATOR OR SEALED TYPE ALTERNATOR)(#3001-3541)
RADIATOR AND PIPING(FOR 25A ALTERNATOR OR SEALED TYPE ALTERNATOR)(#3542-3660)
RADIATOR AND PIPING(FOR 25A ALTERNATOR OR SEALED TYPE ALTERNATOR)(#3661-)
RADIATOR AND PIPING (WITH STEEL CAB AND AIR CONDITIONER) (FOR JAPAN)(#3001-3541)
RADIATOR AND PIPING (WITH STEEL CAB AND AIR CONDITIONER) (FOR JAPAN)(#3542-3660)
RADIATOR SUB TANK AND PIPING (FOR JAPAN)(#3001-3660)
RADIATOR SUB TANK AND PIPING (FOR JAPAN)(#3661-)
TIP CLEARANCE COVER(#3542-)
FUEL TANK AND RELATED PARTS
FUEL TANK AND PIPING (WITH FRP CANOPY)(#3001-3660)
FUEL TANK AND PIPING (WITH FRP CANOPY)(#3661-)
FUEL TANK AND PIPING(#3001-3660)
FUEL TANK AND PIPING(#3661-)
FUEL TANK AND PIPING (WITH ROPS CAB)(#3001-3660)
FUEL TANK AND PIPING (WITH ROPS CAB)(#3661-)
FUEL TANK AND PIPING (WITH STEEL CAB)(#3001-3660)
FUEL TANK AND PIPING (WITH STEEL CAB)(#3661-)
FUEL CONTROL LEVER(#3001-3660)
FUEL CONTROL LEVER (WITH STEEL CAB)(#3001-3660)
FUEL CONTROL LEVER (WITH DECELERATOR PEDAL)
TRANSMISSION CONTROL LEVER (1/3)(#3001-3660)
TRANSMISSION CONTROL LEVER (1/4)(#3661-)
TRANSMISSION CONTROL LEVER (1/3) (WITH STEEL CAB) (FOR JAPAN)(#3001-3660)
TRANSMISSION CONTROL LEVER (1/4) (WITH STEEL CAB) (FOR JAPAN)(#3661-)
TRANSMISSION CONTROL LEVER (2/3)(#3001-3660)
TRANSMISSION CONTROL LEVER (2/4)(#3661-)
TRANSMISSION CONTROL LEVER (2/3) (WITH STEEL CAB) (FOR JAPAN)(#3001-3660)
TRANSMISSION CONTROL LEVER (3/4)(#3661-)
TRANSMISSION CONTROL LEVER (3/3)(#3001-3152)
TRANSMISSION CONTROL LEVER (3/3)(#3153-3660)
TRANSMISSION CONTROL LEVER (4/4)(#3661-)
TRANSMISSION CONTROL LEVER (3/3) (WITH STEEL CAB) (FOR JAPAN)(#3001-3152)
TRANSMISSION CONTROL LEVER (3/3) (WITH STEEL CAB) (FOR JAPAN)(#3153-3660)
TRANSMISSION CONTROL LEVER (4/4) (WITH STEEL CAB) (FOR JAPAN)(#3661-)
ELECTRICAL SYSTEM
BATTERY (FOR JAPAN)
BATTERY (LARGE CAPACITY TYPE)
ELECTRICAL SYSTEM (FOR JAPAN)(#3001-3660)
ELECTRICAL SYSTEM (FOR 25A ALTERNATOR) (FOR JAPAN)(#3001-3660)
ELECTRICAL SYSTEM(#3661-)
BATTERY WIRING(#3001-3660)
BATTERY WIRING(#3661-)
VEHICEL LAMP(#3661-)
VEHICEL LAMP (FOR CANVAS CANOPY AND HEAD GUARD)(#3661-)
VEHICEL LAMP (FOR ROPS CAB)(#3661-)
ADDITIONAL WORK LAMP (WITH STEEL CAB)
BACK-UP ALARM(#3001-3660)
BACK-UP ALARM(#3661-)
BACK-UP BUZZER(#3661-)
POWER TRAIN AND FINAL DRIVE
UNIVERSAL JOINT
TRANSMISSION (CASE) (1/7)
TRANSMISSION (REVERSE HOUSING) (2/7)
TRANSMISSION (FORWARD AND 3RD HOUSING) (3/7)
TRANSMISSION (2ND HOUSING) (4/7)
TRANSMISSION (1ST HOUSING) (5/7)
TRANSMISSION (TRANSFER) (6/7)
TRANSMISSION (PUMP) (7/7)
TRANSMISSION VALVE (MODULATION)
TRANSMISSION VALVE (SELECTOR AND INCHING)
BEVEL GEAR AND SHAFT
STEERING CLUTCH
BRAKE
STEERING CASE COVER
STEERING CASE COVER (WITH ROPS CANOPY OR ROPS CAB)
FINAL DRIVE CASE
FINAL DRIVE GEAR
SPROCKET AND SHAFT
STEERING PIPING (1/3) (TRANSMISSION LINE)(#3001-3152)
STEERING PIPING (1/3) (TRANSMISSION LINE)(#3153-)
STEERING PIPING (2/3) (STEERING CLUTCH LINE)
STEERING PIPING (3/3) (BRAKE CYLINDER LINE)
STEERING BRAKE CYLINDER
OIL COOLER PIPING
HYDRAULIC SYSTEM
HYDRAULIC TANK AND FILTER(#3001-3660)
HYDRAULIC TANK AND FILTER (FOR JAPAN)(#3661-)
HYDRAULIC TANK AND FILTER (WITH ROPS CAB)(#3001-3660)
HYDRAULIC TANK AND FILTER (WITH STEEL CAB) (FOR JAPAN)(#3001-3660)
HYDRAULIC PIPING (TANK TO PUMP TO VALVE)(#3001-3660)
HYDRAULIC PIPING (TANK TO PUMP)(#3661-)
HYDRAULIC PIPING (PUMP TO VALVE)(#3661-)
HYDRAULIC PIPING (LIFT CYLINDER LINE)
HYDRAULIC PIPING (TILT CYLINDER LINE) (CHASSIS SIDE)(#3001-3660)
HYDRAULIC PIPING (TILT CYLINDER LINE) (CHASSIS SIDE)(#3661-)
HYDRAULIC PIPING (ANGLE CYLINDER LINE) (CHASSIS SIDE)(#3001-3660)
HYDRAULIC PIPING (ANGLE CYLINDER LINE) (CHASSIS SIDE)(#3661-)
MAIN FRAME AND RELATED PARTS
OPERATOR'S COMPARTMENT AND CONTROL SYSTEM
OPERATOR'S SEAT (RIGID TYPE) (FOR JAPAN)
OPERATOR'S SEAT (RIGID TYPE) (WITH STEEL CAB) (FOR JAPAN)
OPERATOR'S SEAT (RIGID TYPE) (WITH ROPS CAB)(#3001-3152)
OPERATOR'S SEAT (RIGID TYPE) (WITH ROPS CAB)(#3153-)
OPERATOR'S SEAT (WITH OIL DAMPER)(#3001-3152)
OPERATOR'S SEAT (WITH OIL DAMPER)(#3153-)
OPERATOR'S SEAT (WITH OIL DAMPER) (WITH ROPS CAB)(#3001-3152)
OPERATOR'S SEAT (WITH OIL DAMPER) (WITH ROPS CAB)(#3153-)
SEAT SUSPENSION (WITH OIL DAMPER)(#3153-)
ROPS CAB (BODY) (1/5)
ROPS CAB (FRONT AND REAR WINDOW) (2/5)

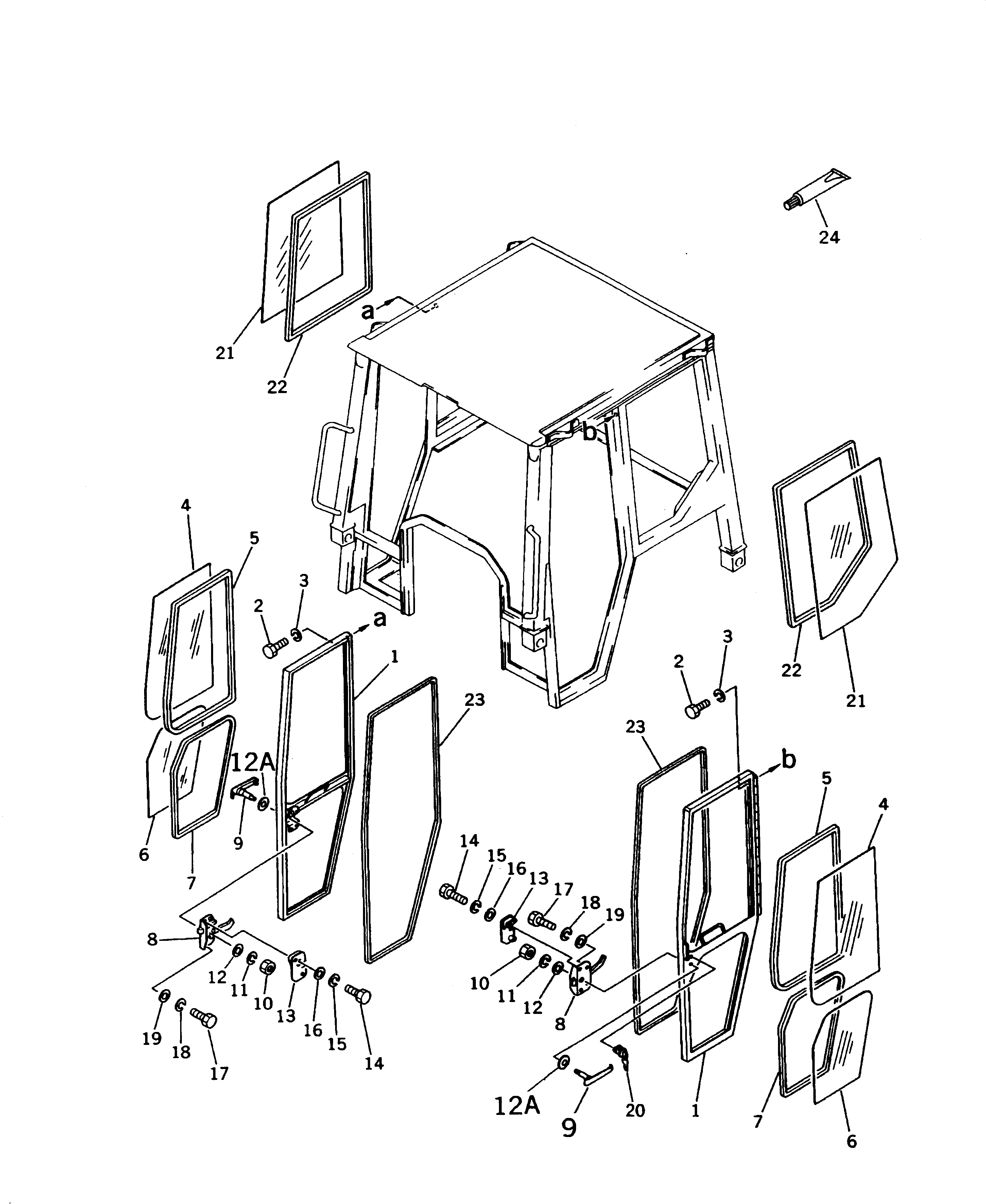

ROPS CAB (DOOR AND SIDE WINDOW) (3/5)
ROPS CAB (ELECTRICAL SYSTEM) (4/5)
ROPS CAB (MOUNTING PARTS) (5/5)
STEEL CAB (BODY) (1/6) (FOR JAPAN)
STEEL CAB (DOOR) (2/6) (FOR JAPAN)
STEEL CAB (DOOR LOCK) (3/6) (FOR JAPAN)
STEEL CAB (WINDOW) (4/6) (FOR JAPAN)
STEEL CAB (WIPER MOTOR) (5/6) (FOR JAPAN)(#3001-3913)
STEEL CAB (WIPER MOTOR) (5/6) (FOR JAPAN)(#3914-)
STEEL CAB (ELECTRICAL SYSTEM) (6/6) (FOR JAPAN)(#3001-3660)
STEEL CAB (ELECTRICAL SYSTEM) (6/6) (FOR JAPAN)(#3661-)
STEEL CAB (RADIO)(#3917-)
ROOM MIRROR (WITH STEEL CAB)
SUN VISOR (WITH STEEL CAB)
CANOPY (2-PILLAR TYPE)
CANOPY (CANVAS) (4-PILLAR TYPE)
HEAD GUARD
ROPS CANOPY
CAR HEATER (1/2)
CAR HEATER (2/2)
AIR CONDITIONER (AIR CONDITIONER UNIT MOUNTING) (1/6) (FOR JAPAN)
AIR CONDITIONER (CONDENSOR AND MOUNTING) (2/6) (FOR JAPAN)
AIR CONDITIONER (AIR DUCT AND CONTROL PANEL) (3/6) (FOR JAPAN)
AIR CONDITIONER (AIR COMPRESSOR AND MOUNTING) (4/6) (FOR JAPAN)(#3001-3660)
AIR CONDITIONER (AIR COMPRESSOR AND MOUNTING) (4/6) (FOR JAPAN)(#3661-)
AIR CONDITIONER (AIR COMPRESSOR PIPING) (5/6) (FOR JAPAN)
AIR CONDITIONER (HEATER PIPING) (6/6) (FOR JAPAN)
AIR CONDITIONER COMPRESSOR UNIT (FOR JAPAN)
AIR CONDITIONER CONDENSOR UNIT(FOR JAPAN)(#3001-3660)
AIR CONDITIONER CONDENSOR UNIT(FOR JAPAN)(#3661-)
AIR CONDITIONER UNIT (INNER PARTS)- RADIO CUSSETTE(#3001-3916)
LOADER FRAME AND FLOOR PLATE
LOADER FRAME AND FLOOR PLATE (WITH ROPS CAB)
LOADER FRAME AND FLOOR PLATE (WITH DECELERATOR PEDAL)
LOADER FRAME AND FLOOR PLATE(WITH DECELERATOR PEDAL AND ROPS CAB)
LOADER FRAME AND FLOOR PLATE (WITH STEEL CAB) (FOR JAPAN)
INSTRUMENT PANEL
INSTRUMENT PANEL (WITH VANDALISM PROTECTION)
INSTRUMENT PANEL (WITH STEEL CAB) (FOR JAPAN)
BRAKE PEDAL
BRAKE PEDAL (WITH STEEL CAB) (FOR JAPAN)
STEERING CONTROL LINKAGE
BRAKE PEDAL LINKAGE
FUEL CONTROL LINKAGE (WITH DECELERATOR PEDAL)
DECELERATOR PEDAL
INCHING PEDAL
INCHING PEDAL LINKAGE
FUEL CONTROL LEVER(#3661-)
WORK EQUIPMENT CONTROL LEVER(#3001-3660)
WORK EQUIPMENT CONTROL LEVER (1/5)(#3661-)
WORK EQUIPMENT CONTROL LEVER (1/2) (WITH STEEL CAB) (FOR JAPAN)(#3001-3660)- WORK EQUIPMENT CONTROL LEVER (1/5) (WITH STEEL CAB AND REGULATION OF EU DYNAMIC NOISE)(#3661-)
WORK EQUIPMENT CONTROL LEVER (2/5)(#3661-)
WORK EQUIPMENT CONTROL LEVER (2/2) (WITH STEEL CAB) (FOR JAPAN)(#3001-3660)
WORK EQUIPMENT CONTROL LEVER (3/5)(#3661-)
WORK EQUIPMENT CONTROL LEVER (4/5)(#3661-)
WORK EQUIPMENT CONTROL LEVER (4/5) (WITH STEEL CAB AND REGULATION OF EU DYNAMIC NOISE)(#3661-)
WORK EQUIPMENT CONTROL LEVER (5/5)(#3661-)
WORK EQUIPMENT CONTROL LEVER (5/5) (WITH STEEL CAB AND REGULATION OF EU DYNAMIC NOISE)(#3661-)
GUARD
RADIATOR GUARD AND HOOD (FOR JAPAN)(#3001-3660)
RADIATOR GUARD AND HOOD (FOR JAPAN)(#3661-)
REAR COVER AND HYDRAULIC TANK (FOR JAPAN)
REAR COVER AND HYDRAULIC TANK (WITH ROPS CAB)
REAR COVER AND HYDRAULIC TANK (FOR 4-PILLAR TYPE CANOPY AND VANDALISM PROTECTION)
REAR COVER AND HYDRAULIC TANK (WITH STEEL CAB) (FOR JAPAN)
ROPS BRACKET
STEEL CAB MOUNT BRACKET (FOR JAPAN)
UNDER GUARD(#3001-3660)
UNDER GUARD(#3661-)
UNDER GUARD (WITH FRONT PULL HOOK)(#3001-3660)
UNDER GUARD (WITH FRONT PULL HOOK)(#3661-)
UNDER CARRIAGE
FRONT IDLER
RECOIL SPRING
TRACK ROLLER (FOR RUBBER SHOE SPEC.)(#3001-3565)
TRACK ROLLER (FOR RUBBER SHOE SPEC.)(#3566-3926)
CARRIER ROLLER
TRACK SHOE (RUBBER TYPE) (600MM WIDE)
TRACK FRAME (FOR RUBBER SHOE)- TRACK FRAME (FOR RUBBER SHOE)(#3927-)
TRACK FRAME COVER (FOR RUBBER SHOE)
TRACK GUARD (FOR MONO BLOCK TYPE)(#3001-3926)
